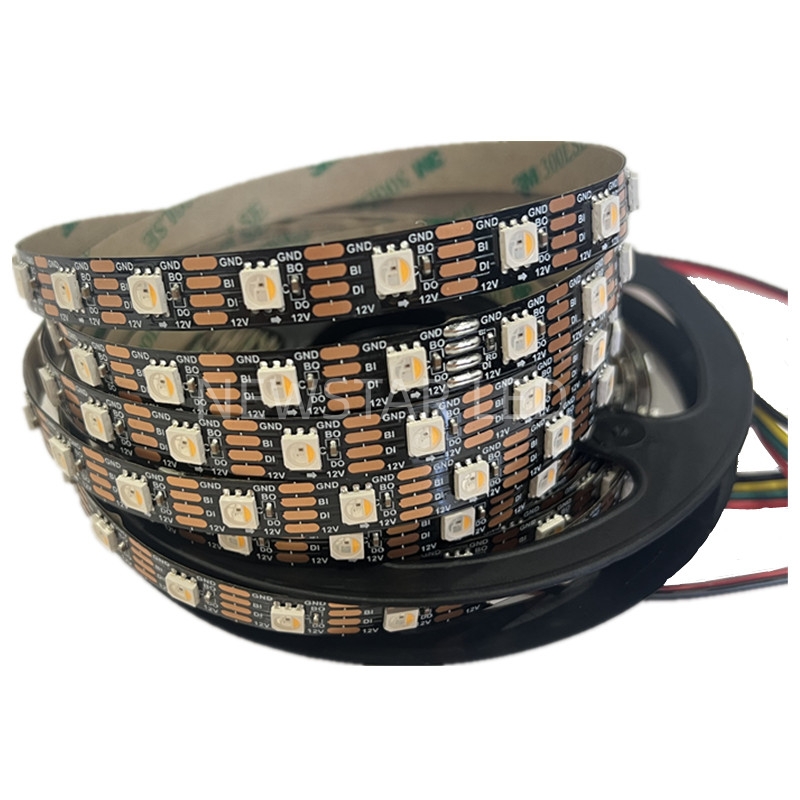

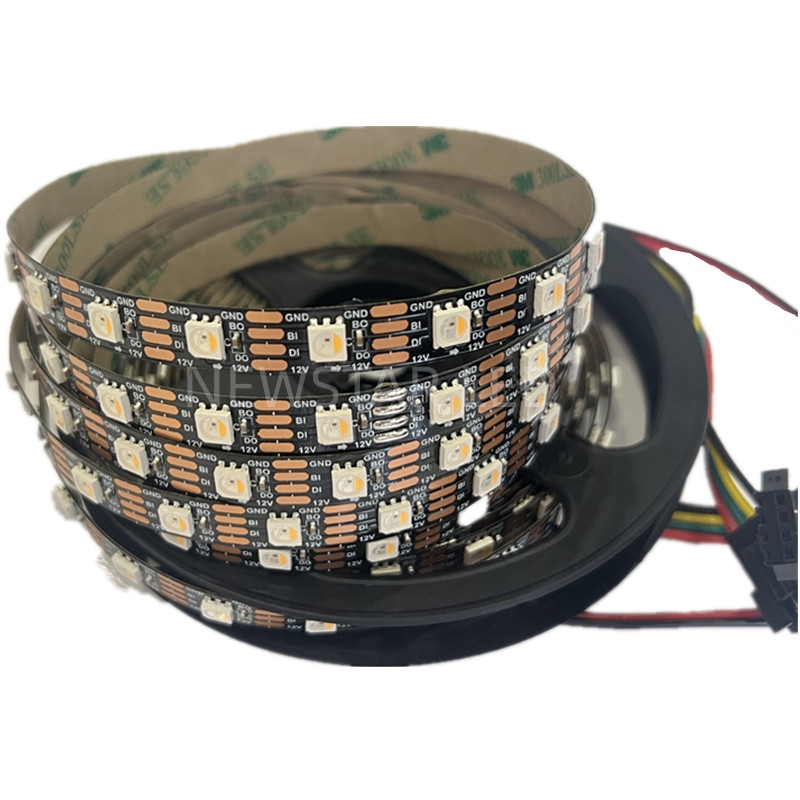

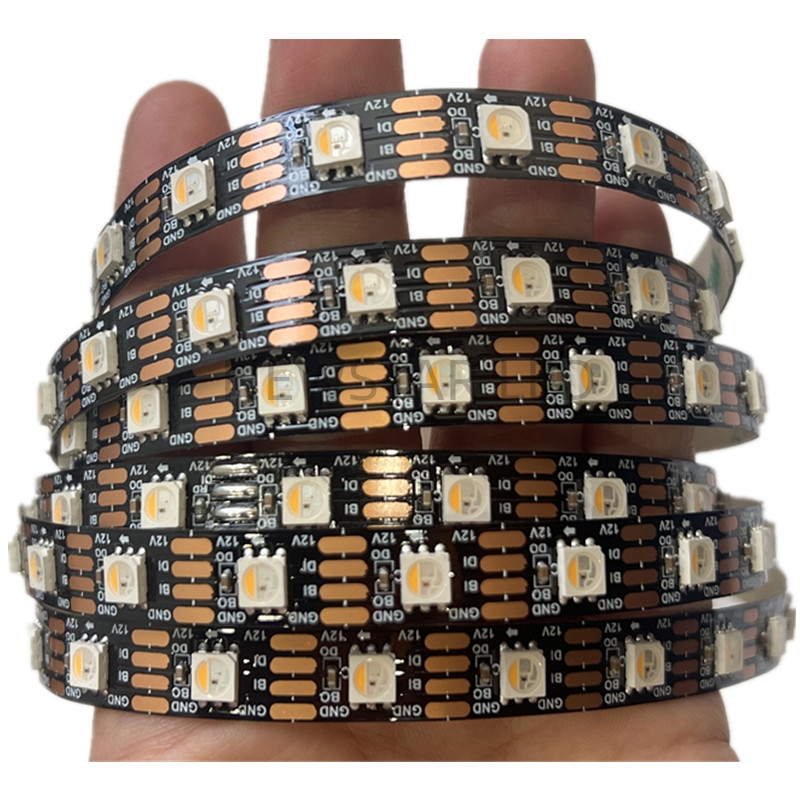

NEW WS2815 RGBW LED Strip DC12V Two DATA Wiring

NEWSTAR has come out with NEW WS2815 RGBW LED which is powered by DC12V. WS2815 RGBW 5050 LED Strip is also continuous breakpoint transmission which means if one LED stops working the data signal continues and the rest of the strip will still light up as usual thanks to a backup data signal.
Description Package Information Inquiry

NEWSTAR has come out with NEW WS2815 RGBW LED which is powered by DC12V. WS2815 RGBW 5050 LED  Strip is also continuous breakpoint transmission which means if one LED stops working the data signal continues and the rest of the strip will still light up as usual thanks to a backup data signal.


WS2815 LED Strip Spec:

Voltage: DC12V

Led type: WS2815 5050 RGBW LED

IC type: WS2815

PCB Width:10/12mm

PCB Color: Black/White

Led lighting angle: 120°

LEDs Per Meter: 30leds/m, 60led/sm, 72leds/m, 96leds/m, 144leds,198leds/m

IP Grade: IP20/IP65/IP67/IP68

Individually Programmable

Cuttable: By each LED

Warranty: 2 Years

Certificate: CE RoHS


Advantage:

1. RGBW with more lighting choices.

2. DC12V operating voltage instead of DC5V, the LED strip has lower voltage drop at long distances.

3. Backup data line from previous LED so that a defective LED has no influence on the rest of the LEDs. Two defective WS2815 LEDs behind each other have influence, however that chance is minimal of course.


WS2815 RGB 5050 LED Strip 30LEDs


60LEDs WS2815 Digital LED Strip


72LEDs WS2815 Addressable LED Strip


144LEDs 12V Digital LED Strip WS2815



WS2815 LED Strip Light Connection
