NEWSTAR has come out with NEW HD105 RGBW LED which is the upgrade of WS2815 RGBW 5050 LED. HD105 RGBW Pixel Strip is also continuous breakpoint transmission, but comparing to WS2815 RGBW, HD105 led is with higher brightness, quicker refresh rate and transmission speed.

HD105 RGBW Pixel LED Strip Spec:

Voltage: DC12V

Led type: HD105 5050 RGBW LED

IC type: HD105

PCB Width:10mm

PCB Color: Black/White

Led lighting angle: 120°

LEDs Per Meter: 30leds/m

IP Grade: IP20/IP65/IP67/IP68

Individually Programmable

Cuttable: By each LED

Warranty: 2 Years

Certificate: CE RoHS

Advantage:

1. 16KHZ refresh rate, 30M transmission speed .

2. Higher brightness RGBW LED with more lighting choices.

3. DC12V operating voltage instead of DC5V, the LED strip has lower voltage drop at long distances.

4. Backup data line from previous LED so that a defective LED has no influence on the rest of the LEDs. Two defective LEDs behind each other have influence, however that chance is minimal of course.

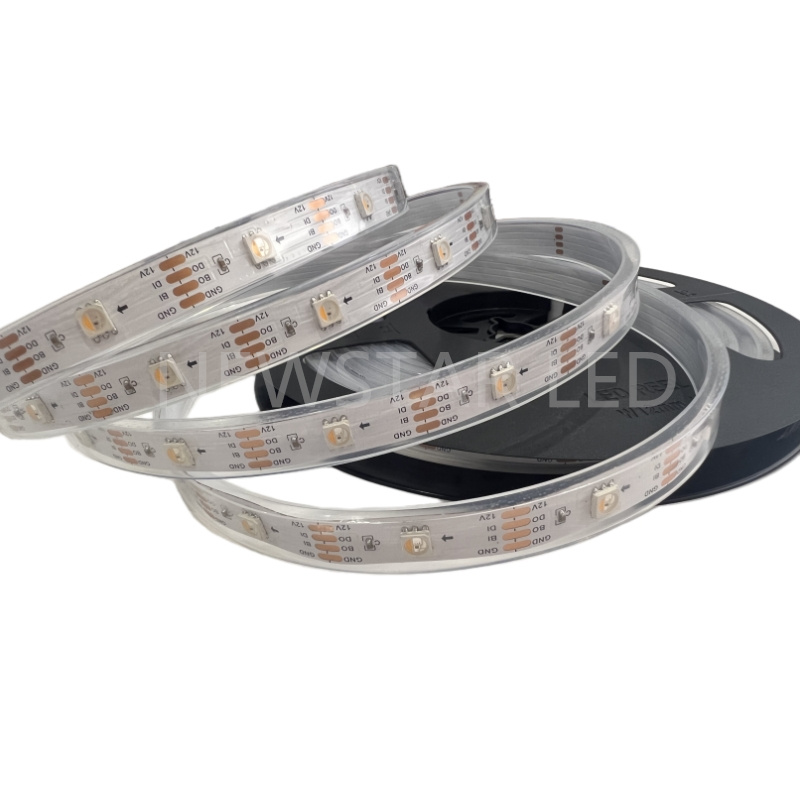

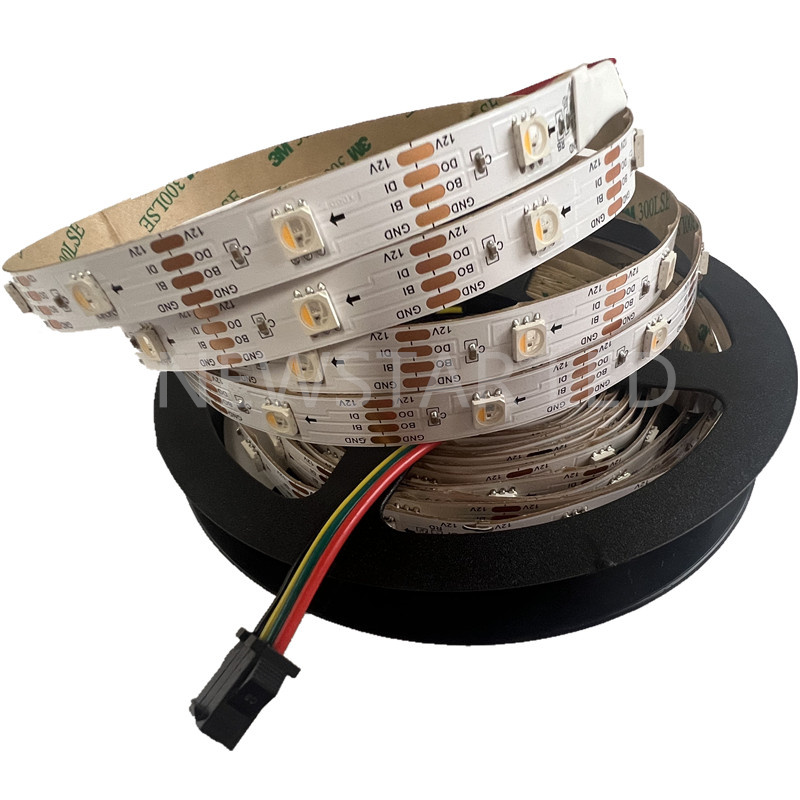

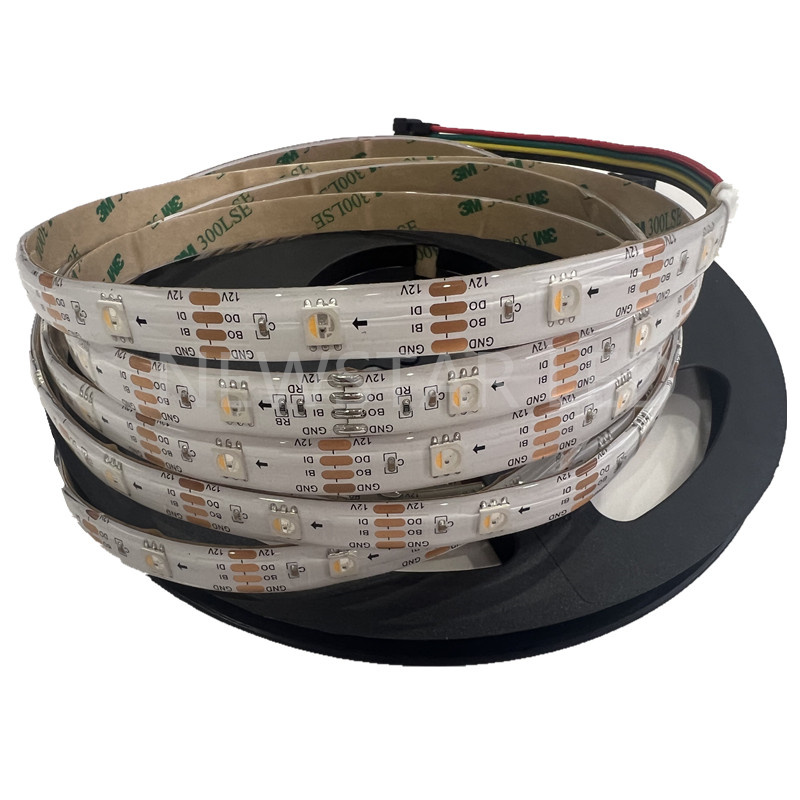

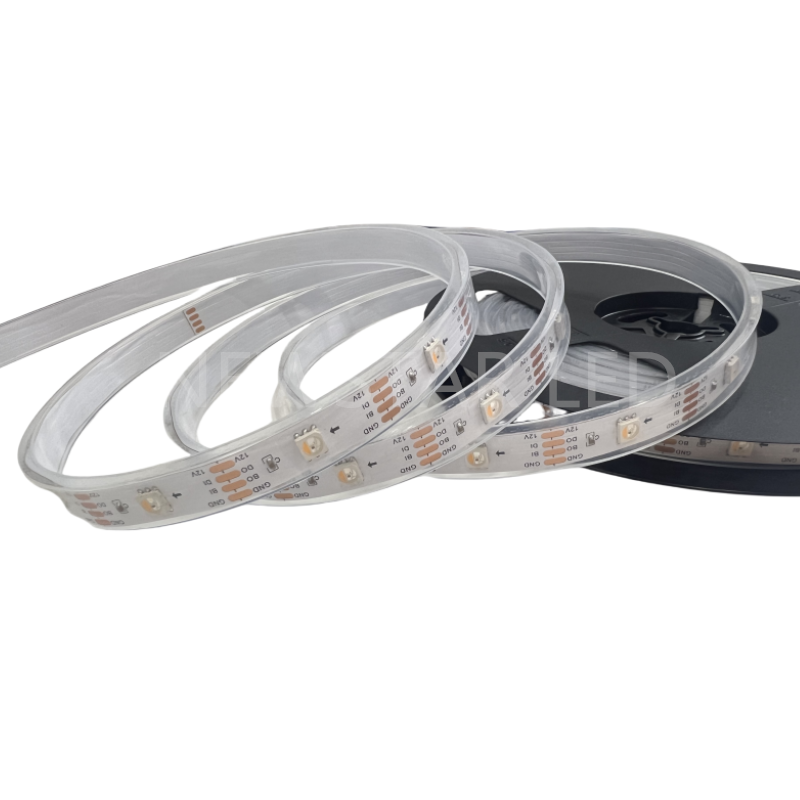

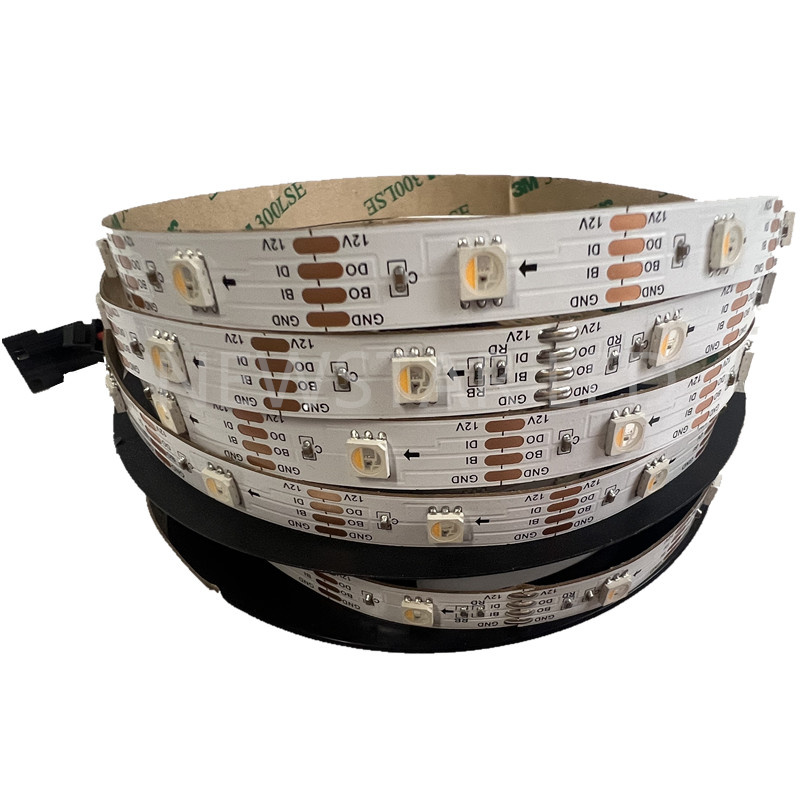

HD105 RGBW Addressable LED Strip 30LEDs

HD105 LED Strip Light Connection
